FEETECH SCS0009 Serial Bus Servo

Product Overview

This FEETECH SCS0009 serial bus servo is a robotic actuator adapted for AmazingHand dexterous hands. It features full-dimensional real-time feedback, metal gear transmission, 10-bit encoder, and standard TTL serial bus communication, with multiple intelligent protection mechanisms built-in.

Key Advantages

Native Compatibility with Amazing Hand Dexterous Hands

Perfectly adapted to Amazing Hand dexterous hands, works out of the box after simple configuration, saves development time for robotic project integration.
Ultra-Compact Size

Suitable for robotics applications that requires compact footprint, such as microrobot joints and dexterous hands.
Full-Dimensional Real-Time Feedback

Provides real-time feedback of position, speed, voltage, current, temperature, and load.
Metal Gearbox

Includes 1:416 gear reduction ratio metal gearbox.
10-bit encoder

Provides 1024-step resolution for precise closed-loop control.
Standard TTL Serial Bus Communication

Communicates through serial connection that can be daisy-chained with a single 3-pin wire.

Hardware Overview

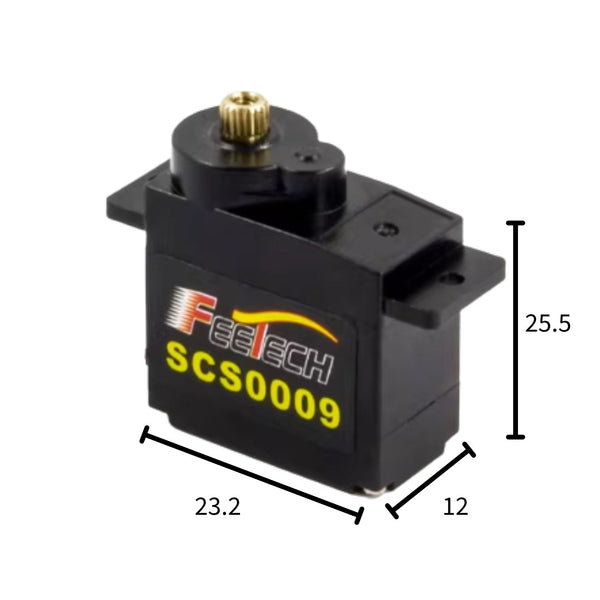

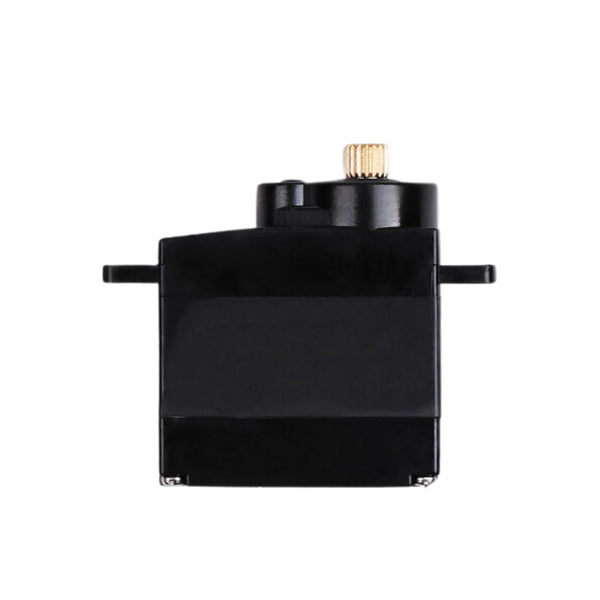

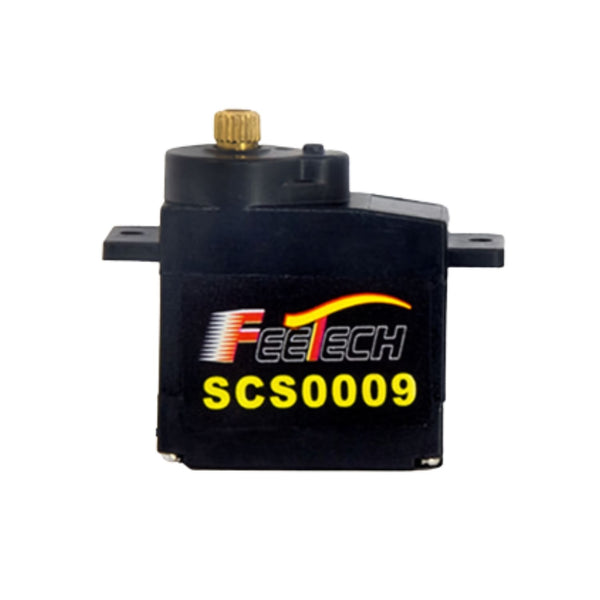

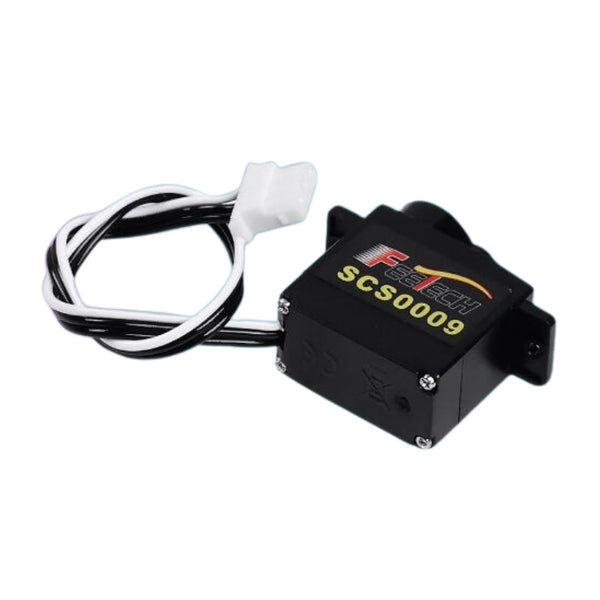

FEETECH SCS0009 Serial Bus Servo Hardware Display

Core Features

Transmission structure: metal gear
Sensor: 10-bit encoder
Communication: TTL serial bus
Protection: Overvoltage, overcurrent, overheating, overload protection
Feedback: Real-time position, speed, torque, temperature, voltage data output
Compact size: Optimized for dexterous hand joint installation

Compatible Platforms

Amazing Hand dexterous hands
Other serial bus servo compatible robotic platforms requiring small-size high-precision actuators

Technical Specifications

Product Name	FEETECH SCS0009 Serial Bus Servo
Model	SCS0009
Transmission Structure	Metal gear
Encoder Type	Magnetic encoding
Communication Protocol	TTL serial bus
Feedback Data	Position, speed, torque, temperature, voltage
Protection Functions	Overvoltage, overcurrent, overheating, overload protection
Compatible Robotic Platforms	Amazing Hand dexterous hands

Technical Support

For detailed technical documentation on software setup and code implementation, please refer to our official Wiki: Access Here. Community technical support is also available to help you accelerate project implementation.

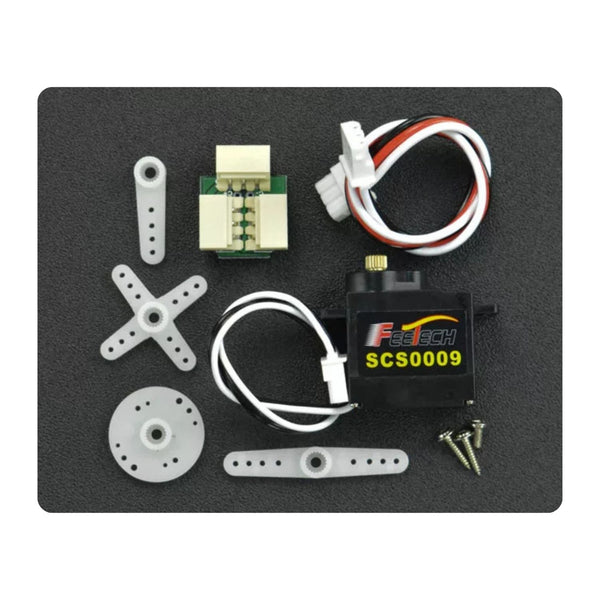

Part List

FEETECH SCS0009 Serial Bus Servo
