Product Overview

The 4-in-1 KVM Switch is an all-in-one multi-device management solution designed for industrial control operation and maintenance, robotics R&D, and multi-platform development scenarios, eliminating the hassle of repeated peripheral plugging/unplugging, complex debugging adapters, and redundant peripherals when working with multiple embedded devices.Integrating KVM switching, 3-port USB 2.0 hub, UART/TTL dual serial debug ports, and master-slave integrated Bluetooth serial module, it supports both physical button and infrared remote switching, requires no driver installation, is fully compatible with Windows, macOS, Linux, and all mainstream embedded controllers (Raspberry Pi, Jetson, RDK series), allowing you to control multiple devices with a single set of keyboard and mouse, greatly improving work efficiency for dual-end development and server OPS scenarios.

Key Advantages

4-in-1 Multifunctional Design

Integrates KVM switch, 3-port USB 2.0 hub, UART/TTL dual serial debug ports and Bluetooth serial module into one device, eliminating the need for multiple separate adapters, saving desk space and reducing cabling clutter. Solves the pain point of needing multiple adapters for embedded development and robotic debugging.
Dual Switching Methods + Real-Time Status Indication

Supports one-click physical button switching with zero latency response, and high-sensitivity infrared remote control for long-distance operation without touching the device. Blue LED indicators clearly show the current active connection status, avoiding misoperation.
Dual Serial Debug Ports

Built-in UART debug serial port and TTL serial port allow direct connection to industrial control motherboards and robot main controllers for low-level debugging and firmware flashing, perfectly meeting the needs of hardware development and device debugging scenarios, no additional serial adapters required.
Wide Compatibility & Plug-and-Play

No driver installation required, fully compatible with Windows 7/8/10/11, macOS, Linux, Ubuntu systems, works with PC, Raspberry Pi series, NVIDIA Jetson series, RDK series and other Linux main controllers. Support Type-C independent power supply for high-load multi-peripheral scenarios, eliminating power shortage and device disconnection issues.
Master-Slave Bluetooth Serial Module

Integrated Bluetooth serial port supports wireless connection, getting rid of cable constraints, ideal for remote debugging and wireless control scenarios for ROS robots and mobile cars.

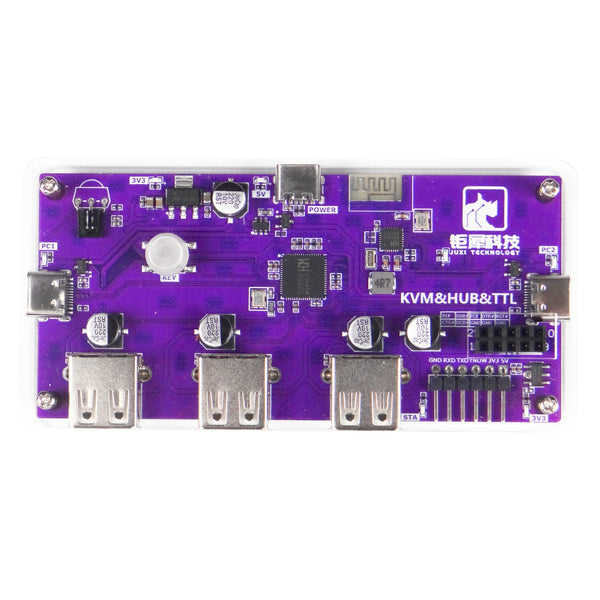

Hardware Overview

Available SKUs:

SKU Category	Included Components	Suitable For
4-in-1 KVM Switch Kit	1× KVM switch unit, 1× IR remote control, 1× Type-C power cable, 2× USB data cables	All users needing multi-device control and embedded debugging requiring only pitch/roll angles

Compatible Devices:

PC computers, Raspberry Pi series, NVIDIA Jetson series (Nano/Orin Nano/Orin NX), RDK X3/X5 series, ROS robots/cars, industrial control motherboards

3-Step Easy Setup:

Connect the two target devices (e.g. PC and Jetson) to the PC1/PC2 ports of the KVM switch via USB cables.
Connect your keyboard, mouse and other USB peripherals to the 3 USB output ports.
Connect Type-C power supply, press the switch button or use the IR remote to switch between devices, ready to use.

Note: Pin headers are shipped un-soldered for standalone modules. Soldering is required for I2C/UART communication.

Technical Specifications

Parameter	Specification
Core Functions	KVM 2-device switching + 3-port USB 2.0 hub + UART/TTL dual serial debug + master-slave Bluetooth serial
Switching Methods	Physical button one-click switching / infrared remote control switching
Input Interface	Type-C (power and data)
Output Interfaces	3× USB 2.0 ports, 1× UART serial port, 1× TTL serial port
Supported Devices	PC, Raspberry Pi, Jetson series, RDK series and other Linux main controllers
Compatible Systems	Windows 7/8/10/11, macOS, Linux, Ubuntu
Working Voltage	5V Type-C
No-load Current	50mA
Dimensions	104mm × 50.5mm × 16.5mm
Weight	54.2g
Warranty	3 months

Technical Support

We provide complete operation guides and serial debugging sample code, designed for embedded developers and robotics engineers, enabling barrier-free deployment in 5 minutes. The support package includes:

Complete hardware connection and setup guide
Serial port debugging sample code for Linux/Windows
ROS robot serial communication tutorial
7-day one-on-one technical support for integration issues

For detailed technical documentation on software setup and code implementation, please refer to our official Wiki: Access Here. Community technical support is also available to help you accelerate project implementation.

Part List

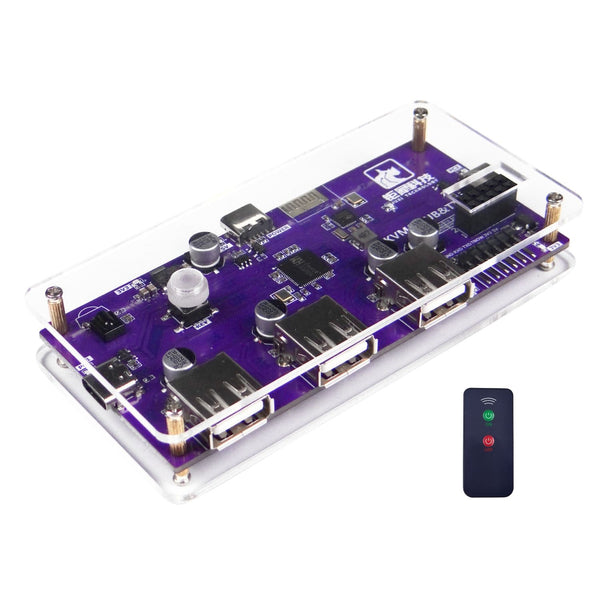

4-in-1 KVM Switch Kit:

1 × 4-in-1 KVM switch unit
1 x Infrared remote control
1 x Type-C power supply cable
2 x USB data cables for device connection
1 x Operation guide
